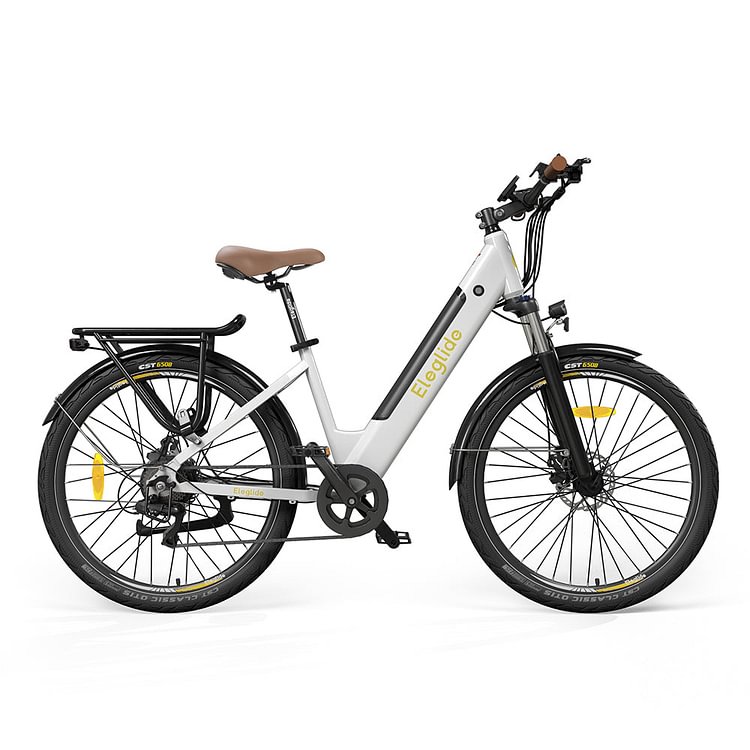

Electric Trekking Bike T1 Step-Thru
Electric Trekking Bike T1 Step-Thru
Electric Trekking Bike T1 Step-Thru
Electric Trekking Bike T1 Step-Thru
Electric Trekking Bike T1 Step-Thru
Electric Trekking Bike T1 Step-Thru
1/6
Electric Trekking Bike T1 Step-Thru
Electric Trekking Bike T1 Step-Thru
Electric Trekking Bike T1 Step-Thru
Electric Trekking Bike T1 Step-Thru
Electric Trekking Bike T1 Step-Thru
Electric Trekking Bike T1 Step-Thru
1/6

Electric Trekking Bike T1 Step-Thru

250W motor
27.5" CST tires
IPX4 waterproof
Dual disc brakes
Shimano 7 gear
36V 12.5AH battery
Maximum load 120KG
Maximum range 100KM
Max Speed 25Km/h

€999.99
€0.00
Save €-999.99
78 sold
Free shipping
EU&UK Warehouse
From
Please select a from
ColorWhite
Please select a color
Quantity
Weight: 0
Barcode:
Inventory: 31

Highlights

Model comparison

 Powerful Motor & Large Battery

Eleglide T1 Step-Thru comprises a 250W powerful brushless motor with 50N.M torque that provides you with constant and strong power and enables the bike to speed up to 25km/h. With a replaceable 450Wh lithium-ion battery, it can run up to 100km(62mi) in assist mode, which is perfect for your long ride.

27.5” CST Tires

The Eleglide T1 Step-Thru bike is equipped with 27.5in CST pneumatic tires that can adapt to a variety of road surfaces. With big tires, it can go smoothly and easily over bumps.

7 Speed Shimano Gear

The T1 Step-Thru electric bicycle comes with a professional Shimano derailleur with 7 gears in the rear. With the help of the derailleur, you can enjoy a faster and easier ride.

Hydraulic Suspension With Lockout

Eleglide T1 Step-Thru is designed with a mechanical damper with lockout, enabling you to have a more comfortable cycling experience. You can lock it on flat roads for a fast ride or unlock it on rough paths for a steady ride.

3 Riding Modes & 5 Speed Levels

While riding the Eleglide T1 Step-Thru bike, you can choose electric mode, assist mode or manual mode. You can also switch among 5 levels of assist/electric mode, including 12, 16, 20, 23 and 25 km/h.

Intelligent Display

Eleglide T1 Step-Thru has an intelligent LCD display that shows you various information, such as speed, distance and battery power. It allows you to activate multiple functions by simple operations on the display, making your ride smarter and easier.

Specification

General

Brand: Eleglide

Model: T1 Step-Thru

Color: White

Basic Specification

Net Weight: 26KG

Unfolded Size: 1790x680x1118mm

Size of Frame: 27.5" x 17"

Length of Handlebar: 660mm

Height of Saddle (from the ground): 32"-39"

Recommended Rider Heights: 155-195cm (5.09ft-6.39ft)

Max Load: 120KG

Max Speed: 25KM/H (Can be adjusted to 32km/h)

Max Range: 50KM (Electric Mode), 100KM (Assist Mode)

Speed Levels of Assist/Electric Mode: 12/16/20/23/25 km/h

Waterproof Level: IPX4

Material: Aluminium Alloy

Braking System: Front & Rear Disc Brakes + Auto Power-off Design

Saddle: Selle Royal (SR)

Motor

Rated Power & Voltage: 250W, 36V

Max Instantaneous Power: 500W

Max RPM: 260

Max Output Torque: 50N.M

Derailleur

Brand: Shimano

Number of Gears: 7(Rear)

Suspension

Mechanical Damping with Lockout

Battery

Capacity: 12.5Ah

Voltage: 36V

Charging Time: 4-6h

Standard Power Consumption: 450Wh

Protection System: Yes

Charger

Input: 100-240V, 1.8A

Output: 42V, 2A

Tire

Brand: CST

Size: 27.5" x 1.75"

Type: Pneumatic Tire

Tire Pressure: 45-65PSI

Best Tire Pressure: 50PSI (Front), 55PSI (Rear)

Display

3.5" LCD

Package

Size: 1480x250x830mm

Gross Weight: 30.5KG



What's in the box?

1 x E-Bike
2 x Pedal
1 x Charger
1 x Tool Kit
2 x Key
1 x Throttle Kit
1 x User Manual
2 x Spoke Reflector
1 x Taillight
1 x Headlight
1 x LCD Display

FAQs

A: Yes. The battery is removable which can be charged on or off the bike.

A: Yes. You can buy an extra battery from our official website or our authorized distributors.

A: Yes.

A: The battery pack can be charged on or off the bike by plugging in the charger unit. The charger unit connects to a standard wall outlet. The charging time is 4 to 6 hours.

A: Yes. Both the T1 and T1 Step-Thru models come with an LCD display that shows various information, including speed, battery power, speed level, riding distance, trip time, etc.

A: Your e-bike will arrive partially assembled and packaged in a standard bike box. The parts that need to be mounted include the front wheel, display, pedals, saddle, handlebar, reflectors, bike lights and mudguards. You can check the user manual or our video instruction on YouTube for a step-by-step guide.

Assembly video: https://www.youtube.com/watch?v=8wA4P2nd3ZA



A: The maximum recommended rider weight is around 120kg for optimal performance.

A: The maximum load of the luggage rack is 25kg.

A: The stem of T1 Step-Thru is adjustable, but the one of T1 is not.

A: Yes. Both T1 and T1 Step-Thru have cruise mode and 6km/h push mode.

A: The sizes of frames are as follows.

Model

Size of Frame

T1

27.5*17.5

T1 Step-Thru

27.5*17

A: Yes. The recommended rider heights are as follows.

Model

Recommended Rider Heights

T1

160-200cm (5.25ft-6.56ft)

T1 Step-Thru

155-195cm (5.09ft-6.39ft)

A: Yes. This electric bike comes with a throttle control. It's easy to install and use. Please conform with local regulations on the use of throttle before installing the throttle control.

A: All of the electric components, including the battery pack, are designed to be waterproof. However, we strongly recommend keeping it indoors on rainy days or in bad weather .

A: Our bikes are shipped from warehouses in Europe. It usually takes around 3-7 working days for shipment
